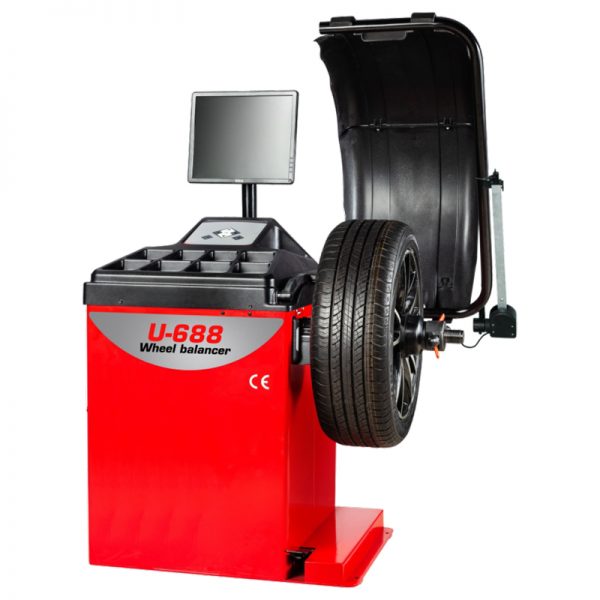

U-688 LCD Display Wheel Balancer with OPT Function & Split and Hidden Weight Solution

The U-688 LCD display wheel balancer with opt function & split and hidden weight solution, this machine features an electromagnetic brake, laser pointer, automatic measurement, 3D animation interface, and multi-language support, making it easy to use and accurate in balancing wheels.

  • Electromagnetic Brake
  • Laser Pointer
  • Automatic measurement
  • 3D Animation Interface
  • Multi-Language Support Currently
SKU: U-688 Wheel Balancer Categories: ,

Description

The U-688 LCD display wheel balancer with opt function & split and hidden weight solution, this machine features an electromagnetic brake, laser pointer, automatic measurement, 3D animation interface, and multi-language support, making it easy to use and accurate in balancing wheels.

Features:

1. Electromagnetic Brake: The electromagnetic brake function can automatically position the inner and outer unbalanced position;

2. Laser Pointer: Points out the unbalancing place with laser automatically;

3. Automatic measurement:

1. Automatic distance and wheel diameter measuring, allowing faster data input;

2. The tracking sticking balancing mode is particularly suitable for the high-class wheel that uses stick-on weights only.

3. Automatic width measuring scale.

4. 3D Animation Interface:

* New patented software system.
* Easy-to-read balancing modes with innovative dynamic indicator light allows accurate and convenient operation.
*Easy-to-use button design with quick and understandable symbols to increase operation speed. *Significantly improved wheel balancing accuracy.

5. Multi-Language Support Currently: Supports 20 languages and customization in other languages is accepted.

Additional information

Product Code

U-688 Wheel Balancer

Balancing Modes

6 Balancing Modes

Balancing speed

200 r.p.m

Rim diameter

252-610 mm 10"-24"

Rim width

40-510 mm 1.5"-20"

Split and hidden weight solution

Measuring time

8s

Balancing accuracy

±1g(±0.04 oz)

Max. wheel weight

65 kg (143 lbs)

Power supply voltage options

110v(1ph)220v(1/3ph)/380v(3ph)

Option motor power

0.24kW

Noise level

< 70dB

N/G weight

105/126 kg (231/278 lbs)

Package dimension

960*760*1250mm
