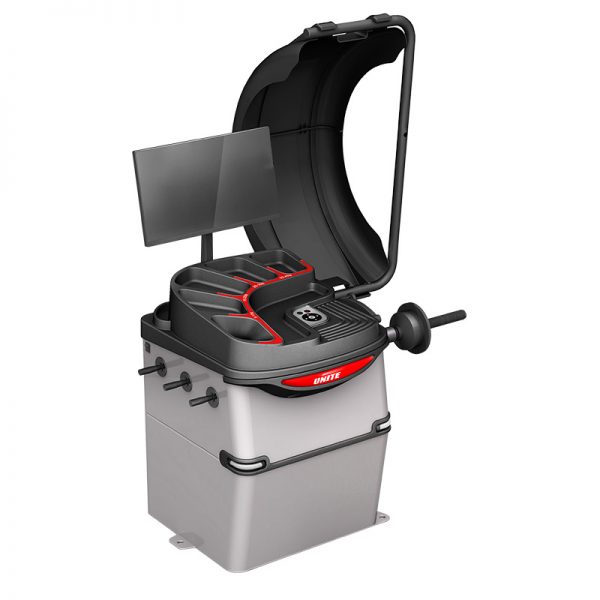

U-659 LED Display Wheel Balancer with OPT Function & Split and Hidden Weight Solution

The U-659 LED display wheel balancer with opt function & split and hidden weight solution, this model tire balancing machine features an electromagnetic brake, laser pointer, automatic measurement, 3D animation interface, and multi-language support, making it easy to use and accurate in balancing wheels.

  • Electromagnetic Brake
  • Automatic Positioning of Unbalance Points
  • Laser Pointer
  • LED Light
  • Automatic measurement
  • 3D Animation Interface
  • Multi-Language Support Currently
SKU: U-589 Wheel Balancer-1 Categories: ,

Description

The U-659 LED display wheel balancer with opt function & split and hidden weight solution, this model tire balancing machine features an electromagnetic brake, laser pointer, automatic measurement, 3D animation interface, and multi-language support, making it easy to use and accurate in balancing wheels.

The U-659 heel balancer builds on the impressive price/performance ratio offered by the U-579, such as Split-Weight Function for discreetly locating the weights behind the spokes, and automatic LED light to illuminate the inside of the rim when applying the weights, but has the added benefit of automatic data entry. As well as automatic entry of the offset and diameter via the inner measuring arm, an outer measuring arm also takes care of the rim width entry, and the all-new ‘monitor-style’ large LED display and new design chassis give the balancer a far more practical and aesthetically improved design.

Features:

1. Electromagnetic Brake: The electromagnetic brake function can automatically position the inner and outer unbalanced position;

2. Automatic Positioning of Unbalance Points: The machine has an automatic positioning feature that detects the unbalanced point, eliminating the need for manual hand-spinning of the tire.

3. Laser Pointer: Points out the unbalancing place with laser automatically;

4. LED Light: Equipped LED to illuminate the operating area;

5. Automatic measurement: Automatic distance and wheel diameter measuring, allowing faster data input; The tracking sticking balancing mode is particularly suitable for the high-class wheel that uses stick-on weights only; Automatic width measuring scale.

6. 3D Animation Interface: New patented software system; Easy-to-read balancing modes with innovative dynamic indicator light allows accurate and convenient operation; Easy-to-use button design with quick and understandable symbols to increase operation speed; Significantly improved wheel balancing accuracy.

7. Multi-Language Support Currently: Supports 20 languages and customization in other languages is accepted.

Additional information

Product Code

U-589 Wheel Balancer

Balancing Modes

6 Balancing Modes

Balancing speed

200 r.p.m

Rim diameter

252-610 mm 10"-24"

Rim width

40-510 mm 1.5"-20"

Split and hidden weight solution

Measuring time

8s

Balancing accuracy

±1g(±0.04 oz)

Max. wheel weight

65 kg (143 lbs)

Power supply voltage options

110v(1ph)220v(1/3ph)/380v(3ph)

Option motor power

0.24kW

Noise level

< 70dB

N/G weight

101kg/117 kg

Package dimension

960*760*1250mm
