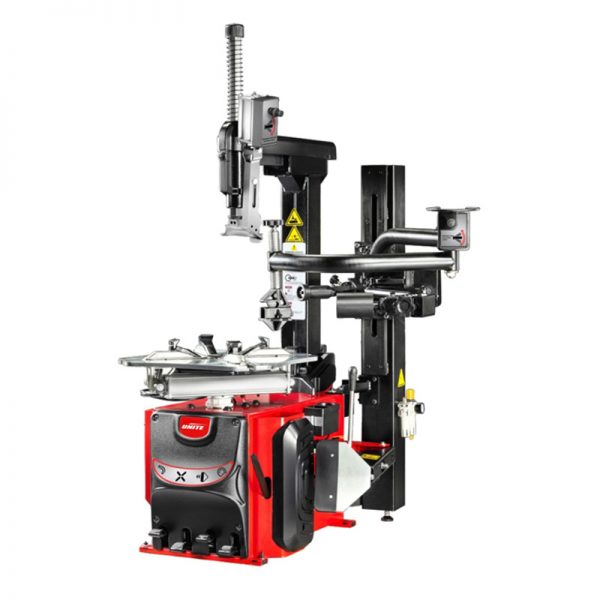

U-256ATPRO Automatic Mount/Demount Head Tilting Type Tyre Changer

The U-256ATPRO tire changer is an automatic mount/demount head tilting type tyre changer with a standard automatic mount/demount head T03, 28″ turntable, and 12-26″ external clamping and 16-28″ internal clamping.

  • Patented reinforced structure design, with the upgraded version of the leverless hook, easy to deal with run-flat tyres.
  • With a multi-functional assist arm, it provides effective protection to the rim and greatly improves the efficiency of tyre removal and installation.
  • Broadly adapt to the main types of tyres in the market.
SKU: U-256ATPRO Tyre Changer Categories: ,

Description

The U-256ATPRO is an automatic mount/demount head tilting type tyre changer with a standard automatic mount/demount head T03, 28″ turntable, and 12-26″ external clamping and 16-28″ internal clamping. It features an independent help arm system with a multi-functional design for bead pressing, lifting, loosening, and wheel positioning. The automatic mount/demount head T03 is lever-less and provides up to 500kg of power. The tyre changer also has a plastic protector with triple protection to avoid scratches on the steel ring.

  • Patented reinforced structure design, with the upgraded version of the leverless hook, easy to deal with run-flat tyres.
  • With a multi-functional assist arm, it provides effective protection to the rim and greatly improves the efficiency of tyre removal and installation.
  • Broadly adapt to the main types of tyres in the market.

Features:

1. 28″ Turntable
2. 12~26″ External clamping
3. 16~28″ Internal clamping
4. Independent Help Arm System

The help arm is rich in functions and easy to operate, providing simultaneously 3-point bead pressing assistance.
The assist arm features a multi-function design, providing extra assistance in wheel positioning, bead pressing, bead lifting and loosening, and other functions.

  • roller-bead pressing
  • roller-bead lifting
  • 360° rotatable combination tyre pressing head-bead pressing
  • 360° rotatable combination tyre pressing head – quick wheel clamping or off/on from the turntable

5. Automatic Mount/Demount Head t03

  • Lever-less – no need to lift the bead manually;
  • The patented lever-less tool provides up to 500kg of power.

6. Plastic Protector
Triple protection, avoiding scratches on the steel ring

  • plastic mount/demount head protector;
  • plastic jaw protector;
  • bead breaker shovel protector.

Additional information

Product Code

U-256ATPRO

External clamping

12~26"

Internal clamping

16~28"

Optional power supply

110V 1PH/220V (1/3PH)/380V 3PH

Motor power

0.75kW

Noise Level

≤75 dB

Air supply pressure

8-10bar (116-145 psi)

N/G weight

396/429kg

Package dimension

1130*900*1080mm (Corestructure) 1550*310*550mm (Helper arm)

U-256APRO VS. U-256ATPRO

Model
U-256APRO
U-256ATPRO
Grading
Medium and high
Professional
Configuration
Tilting type +Help arm system
Tilting type + Help arm system+Automatic mount demount head
Tyre aspect ratio
≥30
≥30
Ordinary tyres
Recommended
Recommended
Low-profile tyres
Recommended
Recommended
RSC
Recommended
Recommended
Off-road tyres
Recommended
Recommended
