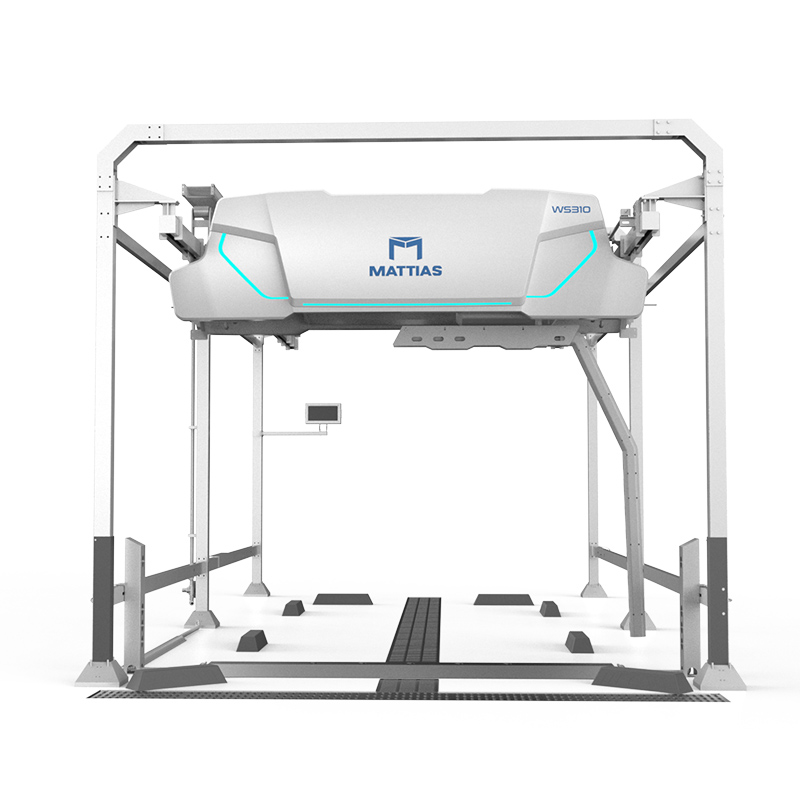

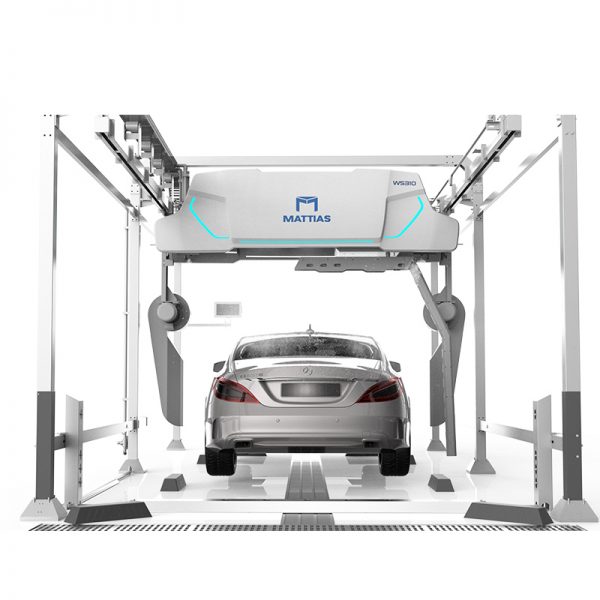

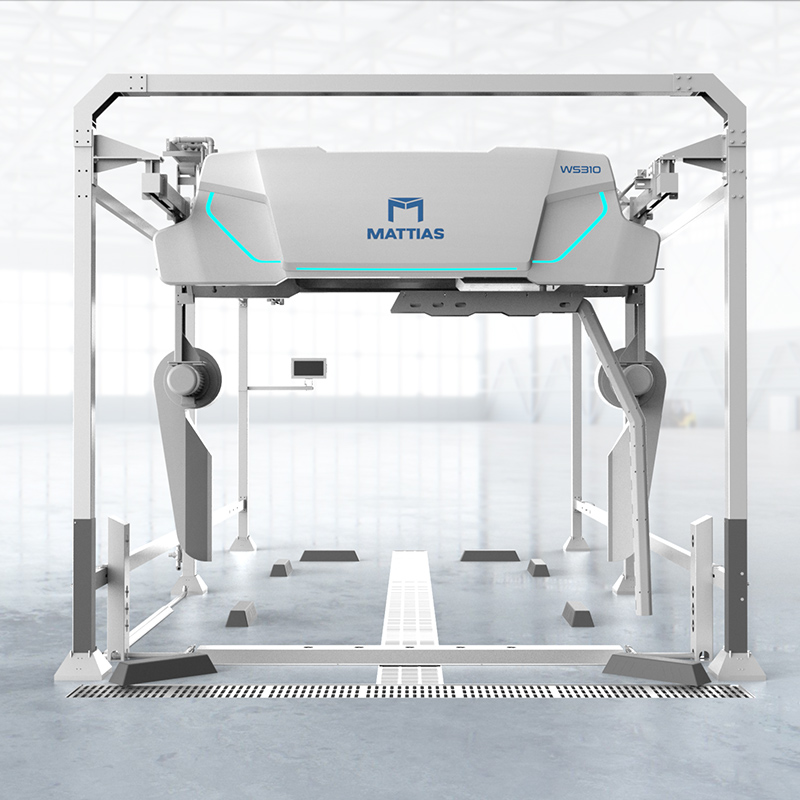

M-WS310 Touchless Car Wash Machine

Mattias’ M-WS310 Touchless Car Wash Machine exclusive Cleaning Technology uses powerful advanced flow concepts, maximised superior spray pattern designs and high-speed wash passes to achieve the highest standards in vehicle wash quality.

• Quick wash 6.5mins; Refine wash 8.5 mins.

• Safe, simple and reliable positioning system.

• Creates an open and welcoming wash bay.

• Measures sides, front, rear, tyre & chassis of vehicles.

• Passenger car, SUV, minivan, and other vehicles with less than 7 seats.

Description

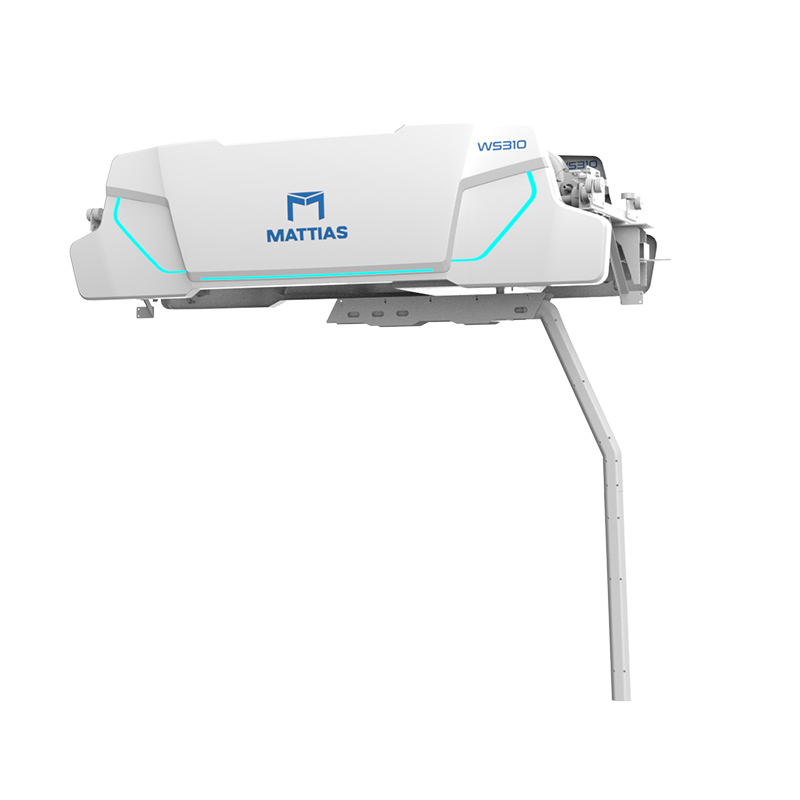

M-WS310 touchless car wash machine combines the action of three variable frequency drives to control the speed of linear motion, lateral movement, and spin. All of these controls, managed by advanced software, result in a highly effective and rapid touchless wash. This unique configuration means that the wash bay area is completely free of obstacles, and thus any type of vehicle can access it with ease and be washed by the user in complete safety.

Features:
Touchless & Scrub-Free: 360° complete coverage wash;
3D vehicle posture detection: with LED alerts for correction;

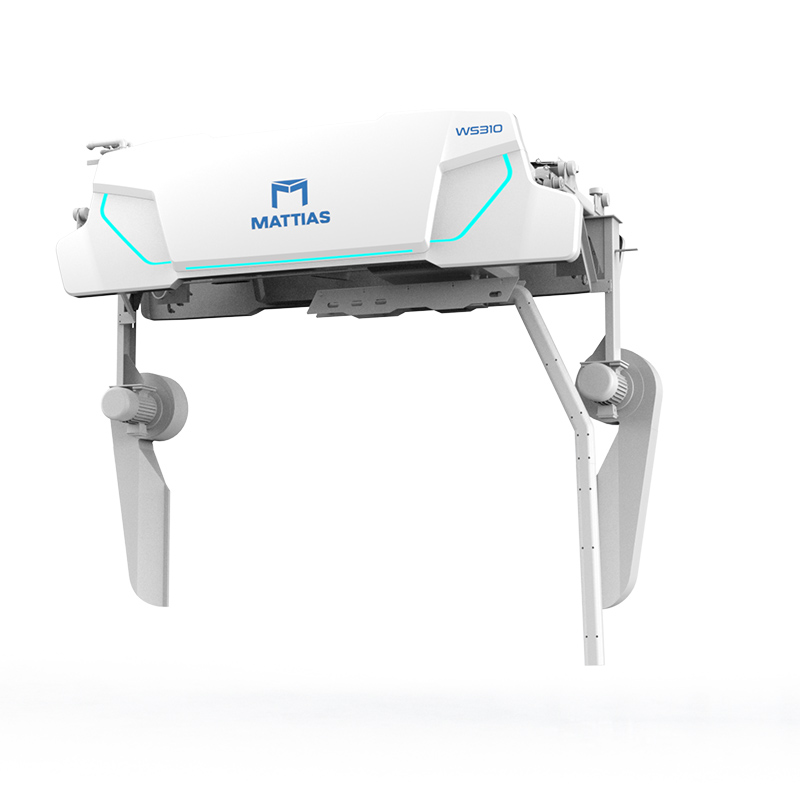

Powerful drying system: 4 top dryers with 2 optional side dryers for superior results;
Automatic mixing of 4 wash solutions for perfect clean.

Auto Touchless car washes use high impact recycled water and specially formulated wash chemicals to clean and meet your “touch free” wash customers requirements. We offer various configurations and options to meet the our clients budget and conditions.

Functional Configuration

Dryer system4 fixed dryers + 2 side dryers(optional)
Travel systemMotor-driven, synchronous belt drive
Manual single-step car washStandard
Standard wash modeStandard
Refine wash modeStandard
Automatic liquid proportioningStandard
Rearview mirror cleaningStandard
High foam shampoo sprayingStandard
Coating wax sprayingStandard
180° rotating high-pressure rinsingStandard
Fault self-check stop alarmStandard
Antifreeze drainingStandard
Intelligent touch screen controlStandard
Leakage protectionStandard
Car wash quantity trackingStandard
Fault Self-diagnosisStandard
Overall StructureHot-dip galvanized modular frame
High-pressure water pre-washStandard
LED displayStandard(Current wash step display)
Acidic car wash liquid sprayingOptional
Alkaline car wash liquid sprayingOptional
Side dryerOptional
Tyre & chassis flushingStandard

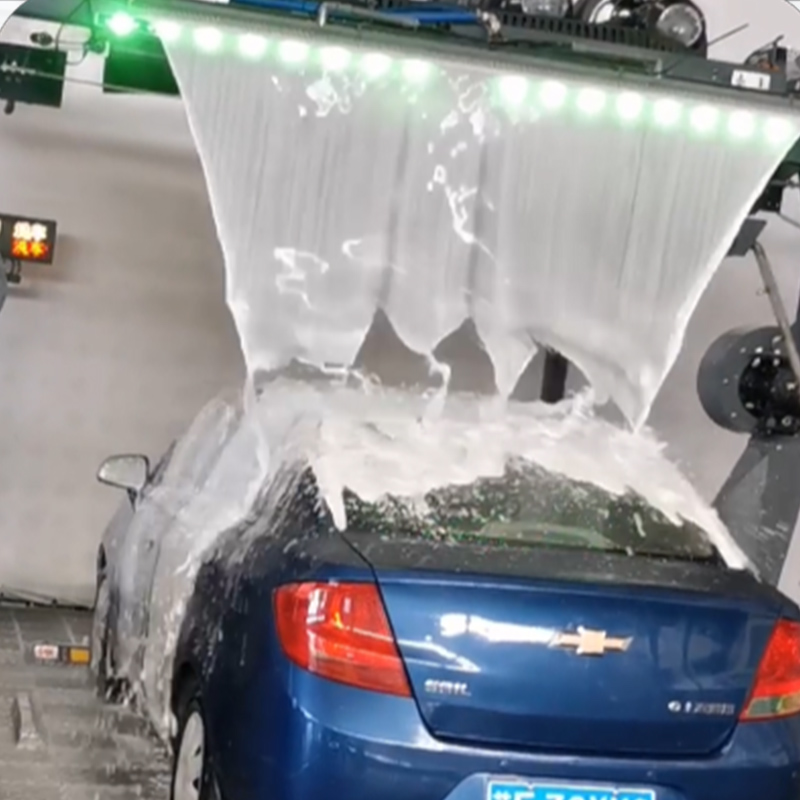

Curtain foam sprayingOptional
Intelligent low-temperature start-stop systemOptional
Intelligent vehicle detectionOptional(Ultrasonic)
Intelligent parking guidanceOptional
WeChat Payment FunctionOptional
Customer-supplied Water Tank Specifications3-5 tons
Customer-supplied Air Compressor Specifications2.2kW, 450L,0.6~ 0.8MPa
Car Wash ProcessMode 1Quick wash Undercarriage rinse → High-pressure water rinse →Foam → High-pressure water rinse → Water wax spray → Air dry(Side dryer optional)
Mode 2Refine wash 1 Undercarriage rinse → High-pressure water rinse(Front and rear reciprocation)  → Foam  → High-pressure water rinse(Front and rear reciprocation) → Water wax spray → Air dry(Side dryer optional)
Mode 3Refine wash 2 Undercarriage rinse →  High-pressure water rinse → Acidic car wash liquid spray (Optional) → Sit for 20 seconds  → Alkaline car wash liquid spray (Optional) → High-pressure rinse → Foam → High-pressure water rinse → Water wax spray → Air dry(Side dryer optional)

Technical Parameters

Applicable Car TypesPassenger car, SUV, minivan, and other vehicles with less than 7 seats
Max.Washable Car Dimensions(L*W*H)5.5m × 2.4m ×2.1m
Car Wash TimeQuick wash 6.5mins; Refine wash 8.5 mins
Shampoo ConsumptionAround  156mL/car
Wax ConsumptionAround  156mL/car
Power ConsumptionAround  2 kWh/car
Water ConsumptionAround  180L~220L/car
Machine Dimensions(L * W * H)7600mm*3700mm*3500mm
Air Source Requirement0.6~0.8MPa
Rated Voltage of Machine3-phase AC380V 50Hz
Rated Power of Machine25kW(including air/dryer/water pump)
Spray Bar Rotation Motor0.37kW*1
Spray Bar Horizontal Movement Motor0.37kW*1
Spray Bar Vertical Movement Motor0.37kW*1
Plunger Pump Motor18.5KW*1
Top Dryer Motor4kW*4
Side Dryer Motor4kW*2
FrameIn-house
Programmable ControllerMitsubishi, Japan
Variable Frequency DriveZONCN, Shanghai China (Rail)
Infrared Photoelectric SwitchBanner, USA / ROKO, Taiwan China
Proximity SwitchROKO, Taiwan China
AC ContactorSchneider, France
UltrasoundPepprl Fuchs
Thermal RelaySchneider, France
Air SwitchDELIXI, China
Pressure Reducing ValveAirTax,Taiwan China
Two-Position Five-Way ValveAirTax,Taiwan China
Pneumatic CylinderAirTax,Taiwan China
High-Pressure Water PumpStandard Domestic brand (Optional PINFL)
