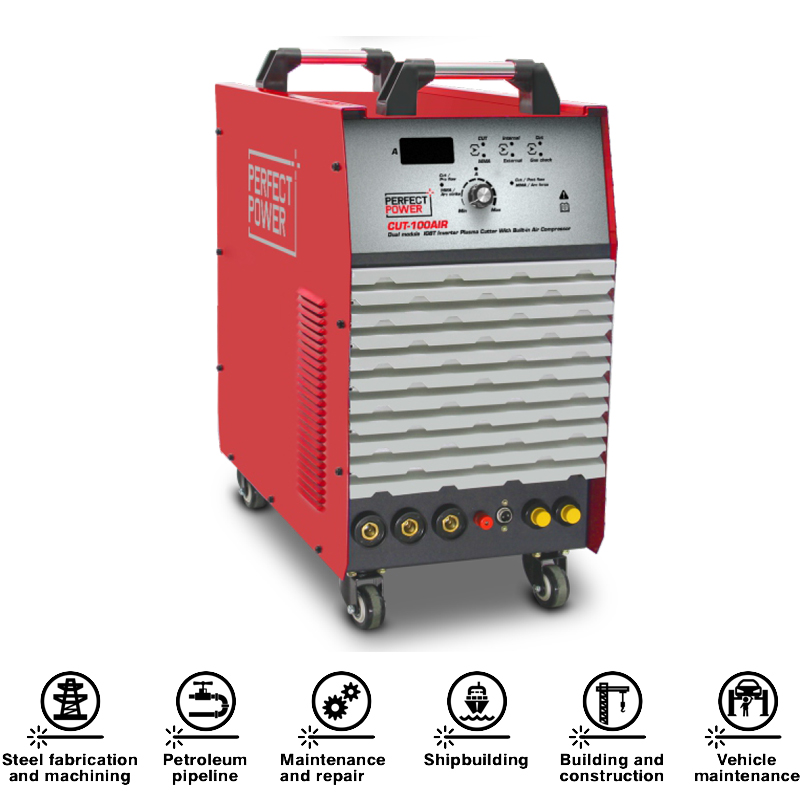

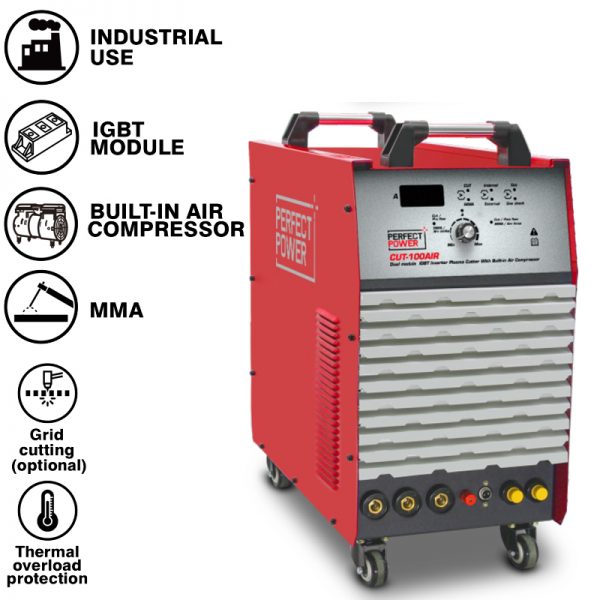

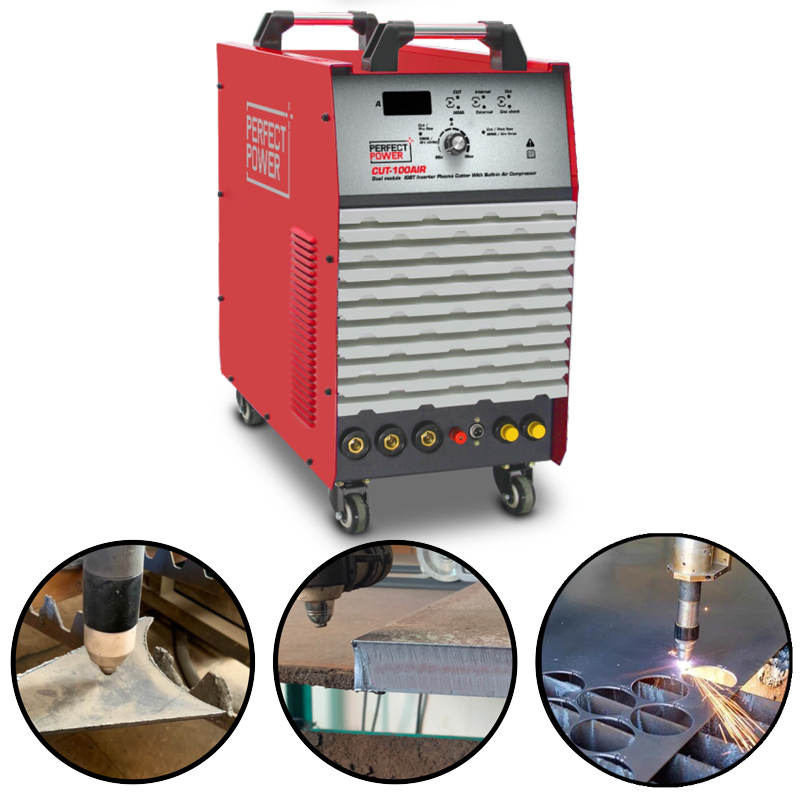

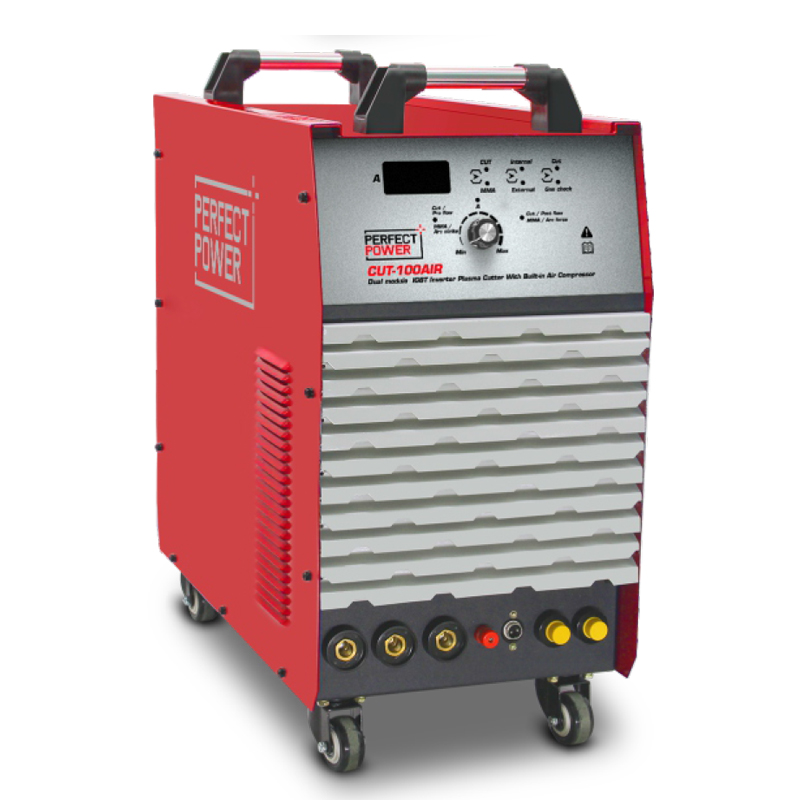

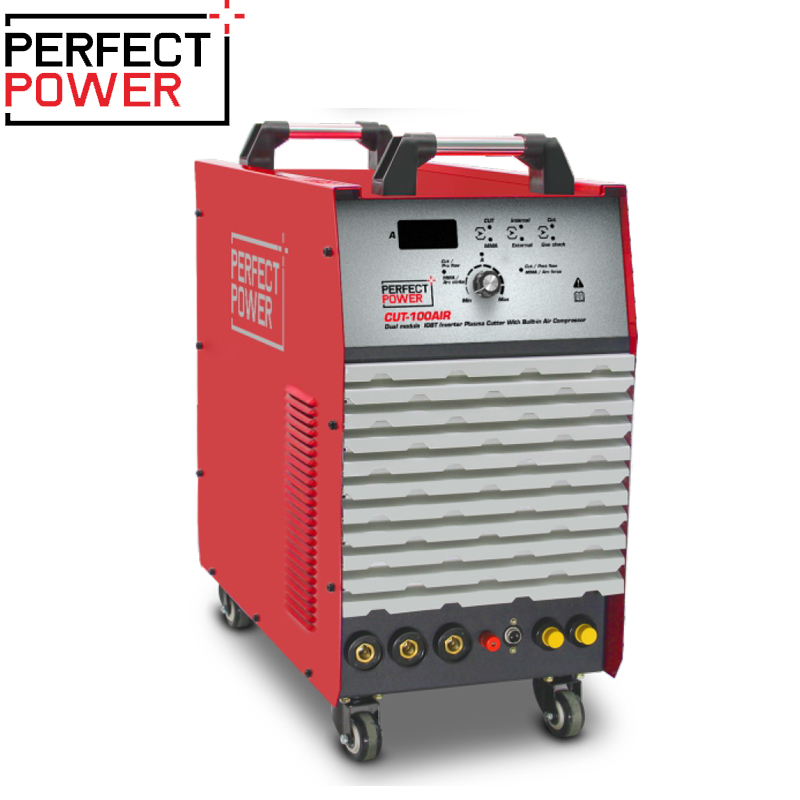

CUT-100Air IGBT Inverter Plasma Cutting Machine

Description

1. Reliable, Powerful cutting device for professional industrial usage
2. Able to be connected with CNC equipment to achieve automatic cutting; the connector is optional.
3. Pilot arc starting increases cutting capability and cutting speed, improving the service life of torch kit.
4. Simple operation, smooth precise cutting
5. Narrow cutting seam, clean cutting edge, anti-deformation
6. Anti-fluctuation of power supply.

Additional information

Model

CUT-100AIR

Power input AC(V)

3pH 380V ±15%

Power input frequency(Hz)

50/60

Max. Load Power Capacity

19(CUT)14.5(MMA)

Rated current input(A)

28.5(CUT)18.5(MMA)

Rated output current(A)/voltage(V)

100/120(CUT)300/32(MMA)

Max. cutting current (A)

100(CUT)300(MMA)

Open circuit voltage DC(V)

295

Rated duty cycle(%)

60

Max.cutting thickness(mm)

25

IP grade

IP21

Insulation grade

F

Dimensions(mm)

765×445×685

Weight (KG)

62
